Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

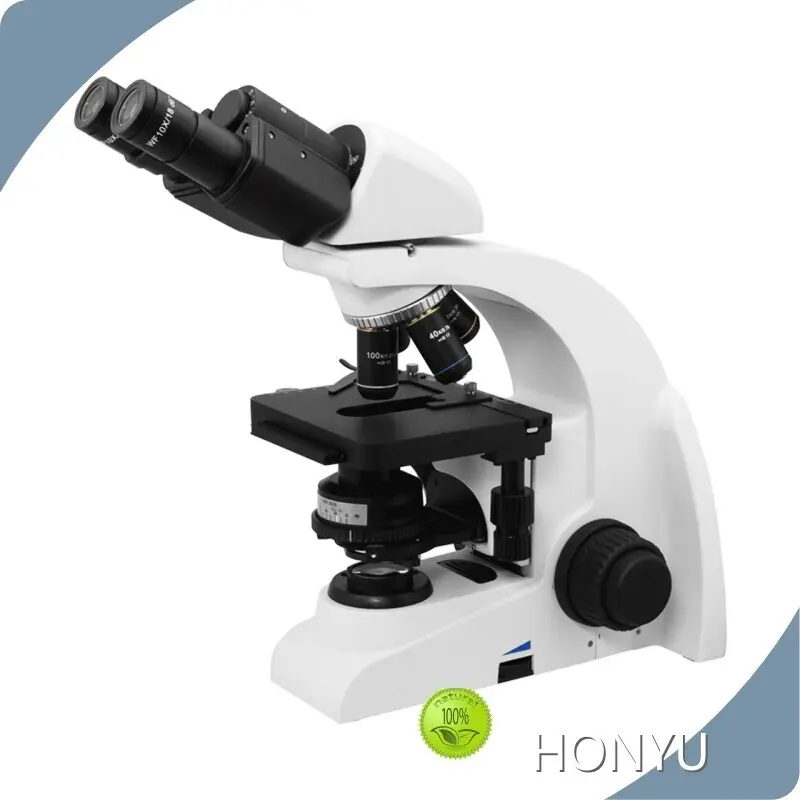

Compound Microscope Biology - for Sale - HONYU
Features
• Adopting infinity optical system
• Equipped with infinity achromatic objectives
• Four wide-field magnification power: 40X, 100X, 400X, 1000X
• Coaxial coarse and fine focus system
Specification
|
Head |
Binocular, Interpupillary distance 52-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10x/18mm, High Eye-point Up To 21mm |
|
Objective |
Infinity Achromatic Objective 4X |
|
Infinity Achromatic Objective10X |
|
|
Infinity Achromatic Objective40X(S) |
|
|
Infinity Achromatic Objective100X(S)/(Oil) |
|
|
Condensor |
Abbe N.A.1.25 With Iris Diaphragm And With Socket For Phase Contrast / Dark Field Slider, Centering Adjustable, Color-Coded Diaphragm Scale Marking Corresponded With The Objectives Of Different Powe |
|
Stage |
Double Layer Mechanical, 142mmX135mm, Range: 76x52mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Focusing system |
Low Positioned, Coaxial Coarse & Fine Focusing System With Tension Adjustment And Up-Limited, Coarse Knob Coarse 14mm/Rot, Fine 0.1mm/Rot, Minimum Reading 1μm On Left-Side Fine Knob, Moving Range 20mm |
|
Nosepiece |
Quadruple, Revolving Nosepiece |
|
Light |
Kohler Illuminator(No Field Diaphragm) |
|
Electrics for 6V20W Halogen |
|
|
Filter |
Blue Filter (φ32, No Blue Filter for LED) |
|
Bulbs |
6V20W Osram Halogen Bulb |
|
250V/3.15A Φ5X20 Fuse |
Optional Accessories
|
Head |
Binocular, Interpupillary distance 48-75mm, 30°inclined, 360° rotatable, ±5 Diopter Adjustment |
|
Eyepiece |
WF10X20mm Eyepieces |
|
WF16X13mm Eyepieces |
|
|
WF10X18mm Eyepiece (Point) |
|
|
WF10X20mm Eyepiece (Point) |
|
|
WF10X20mm Reticule Eyepiece |
|
|
WF10X18mm Reticule Eyepiece |
|
|
Objective |
Infinity Plan Achromatic Objective 4X |
|
Infinity Plan Achromatic Objective 10X |
|
|
Infinity Plan Achromatic Objective 20X(S) |
|
|
Infinity Plan Achromatic Objective 40X(S) |
|
|
Infinity Plan Achromatic Objective 60X(S) |
|
|
Infinity Plan Achromatic Objective 100X(S)/(Oil) |
|
|
Stage |
Double Layer Mechanical, Size:156mmX138mm, Range: 76x54mm Low Position, Right Hand Control, X-Y Coaxial Control Knob, Two Slides Holder |
|
Nosepiece |
Quintuple, Revolving Nosepiece |
|
Light |
Electrics for 3W LED(with Rechargeable Battery) |
|
Electrics for 3W LED |
|
|
LED Rechargeable Battery |
|
|
Reflected Mirror |
|
|
Filter |
Green Filter (φ32) |
|
Yellow Filter (φ32) |
|
|
Ground Grass (φ32) |
|
|
Polarizing Kits |
Polarizer |
|
Analyzer |
|
|
Bulbs |
3W LED Bulb |
products display
Company Advantages
· The raw material used in HONYU compound microscope biology is of high quality and has no any strange smell during use.
· The product has the quality that has been recognized by many international certificates.
· High quality for compound microscope biology is not checked by us and commented by our customers.
Company Features
· The HONYU brand is now leading the compound microscope biology industry.
· We have received many honors during our business operation. We have been awarded as 'Best Supplier', 'Best Quality Provider', etc. These honors encourage us to reach better results.
· We are committed to maintaining the highest ethical standards in our business. We have implemented an Integrity Management Plan that sets out the administrative structure and measures for integrity management.
Application of the Product
The compound microscope biology developed by HONYU is widely used in industry.
According to different needs of customers, HONYU is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
