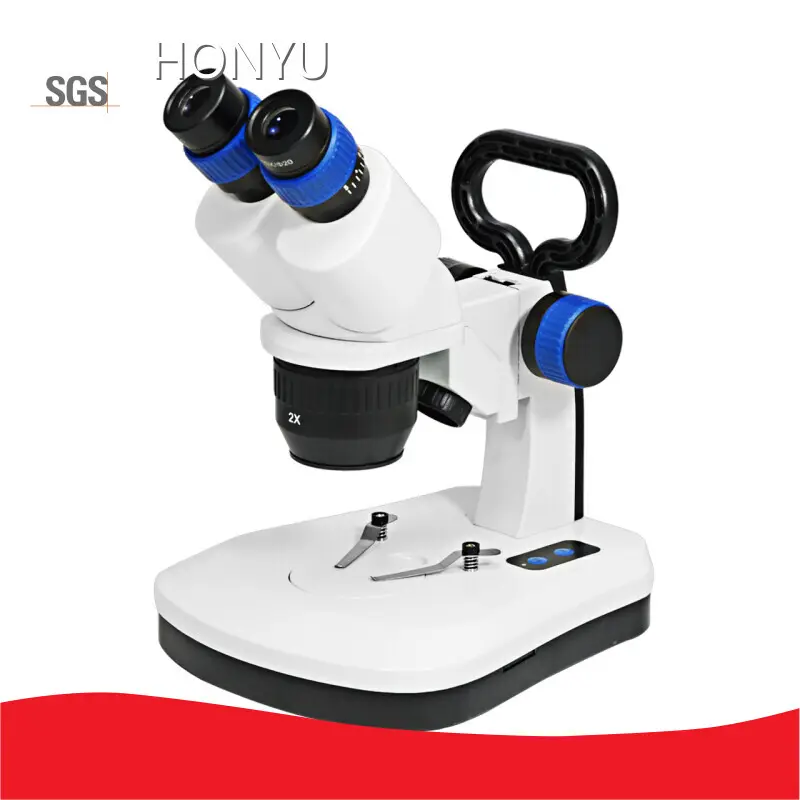

Product details of the stereo microscope 100x
Product Description
HONYU stereo microscope 100x is designed and crafted by a team of experts following the international standards. The product is of highest quality and manufactured under strict quality control system. Ningbo Haishu HONYU Opto-Electro Co., Ltd's customer service is very professional in stereo microscope 100x industry.
Features
• 10X/30X, or 20X/40X magnification power
• WF10x Eyepieces with eyeshields
• Versatile 76mm Working Distance
• Dual, variable 1W LED illumination
• Ergonomic carrying grip
Specification
Head |
45° Binocular head |
Eyepiece |
Wide field, WF10X |
Objective |
Turret objective 1x3x or 2X/4X |
Magnification Range |
10X-30X or 20X-40X |
Inter-Pupillay Distance |
55-75mm |
Diopter Range |
5mm |
Working Distance |
76mm |
Illumination |
Incident light LED 1W, transmitted light: 7x20mA LED light, brightness adjustable by touching pad(5-steps) |
Stand |
Track stand |
Technical Data
Objective |
Eyepiece |
Working Distance (mm) |
|||||||
5X |
10X |
15X |
20X |
||||||
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
Mag. |
FOV(mm) |
||
1X |
5X |
20 |
10X |
20 |
15X |
15 |
20X |
10 |
76 |
2X |
10X |
10 |
20X |
10 |
30X |
7.5 |
40X |
6.5 |
76 |
3X |
15X |
7 |
30X |
6.7 |
45X |
5 |
60X |
4.3 |
76 |
4X |
20X |
5 |
40X |
5 |
60X |
3.7 |
80X |
3.2 |
76 |
Optional Accessories
Eyepiece |
WF5X |
WF15X |
|
WF20X |
