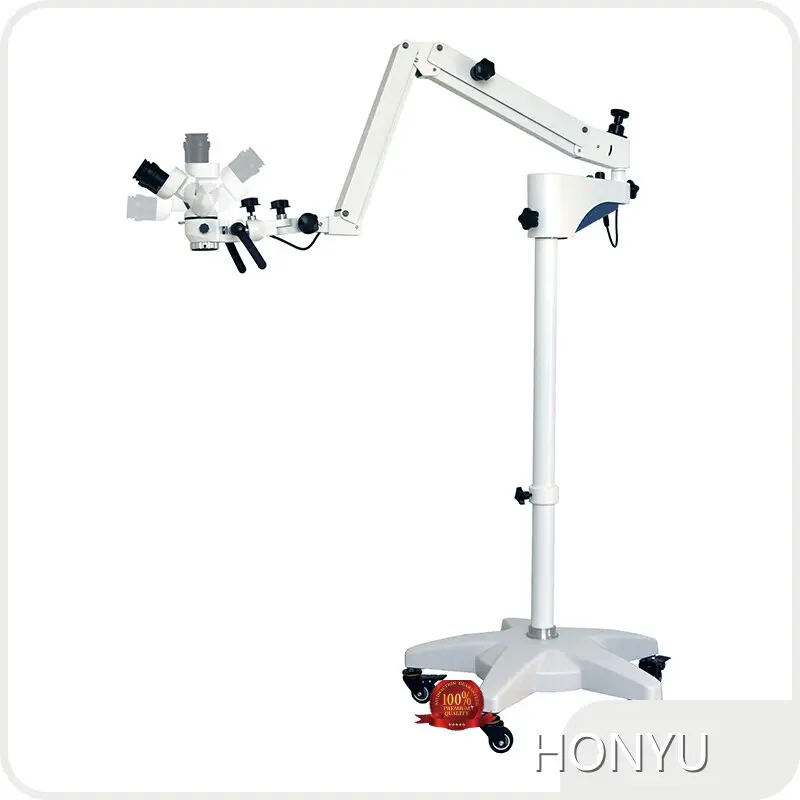

Bulkophthalmic Surgical Microscope Price for Dslr
Company Advantages
· HONYU ophthalmic surgical microscope price is made of the finest materials that have passed our strict materials selection system.
· The product is of reliable quality because it is manufactured and tested in accordance with widely recognized quality standards.
· Over the years, this product has received a good reputation from our customers.
Features
• 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
• Two objectives with different focusing distance
• High brightness 10W LED illumination
• Total Magnification: 3x-16x (with Optional objective)
Specification
|
Magnification of binocular |
8X |
|
Binocular |
0-180° inclinable |
|
Magnification of eyepiece |
12.5X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter adjustable |
±7D |
|
Focal length of objective |
F=200mm and F=250mm two objectives |
|
Magnification changer |
3-step, 0.6X, 1X, 1.6X |
|
Total magnification |
4.8X, 8X, 12.8X, 6X, 10X, 16X |
|
Linear field |
50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
|
Fine focusing distance |
10mm |
|
Illumination |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
|
Filter |
Build-in green and yellow filters |
|
Balancing arm |
2-part arm with universal joints, counterweight adjustable and can be locked |
|
Floor stand |
2-part column fitted on the five-star base with casters |
|
Power supply |
AC100V-AC240V |
Optical Parameter
|
Magnification of eyepiece |
12.5X/20mm |
|||||||||||
|
Focal length of objective |
F=200mm |
F=250mm |
F=300mm(optional) |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
16X |
10X |
6X |
12.8X |
8X |
4.8X |
10.7X |
6.7X |
4X |
8X |
5X |
3X |
|
Linear field (mm) |
15 |
24 |
40 |
19 |
30 |
50 |
23 |
37 |
60 |
30 |
48 |
80 |
|
Diameter of spot (mm) |
57 |
71 |
86 |
113 |
||||||||
|
Exit pupil distance (mm) |
20 |
|||||||||||
Optional accessories
|
Objectives |
F=200mm, F=300mm, F=200-300mm zooming objective |
|
Other accessory |
Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |
products display
Company Features
· As a reliable manufacturer and provider, Ningbo Haishu HONYU Opto-Electro Co., Ltd has won the trust of the ophthalmic surgical microscope price market.
· With a modern production line, our company has the ability to fully produce high quality ophthalmic surgical microscope price. ophthalmic surgical microscope price has excellent quality and excellent performance. The quality of ophthalmic surgical microscope price has reached a very high level.
· It is our determination to create HONYU to be the leading ophthalmic surgical microscope price manufacturer. Ask!
Application of the Product
ophthalmic surgical microscope price of HONYU can be used in different industries to meet the needs of customers in different fields.
We have been engaged in the production and management of Biological Microscope,Stereo Microscope,Metallurgical Microscope,Operation Microscope,Comparison Microscope,Handheld Digital Microscope,Microscope Accessories for many years. For some problems encountered by customers in the procurement, we have the ability to provide customers with a practical and effective solution to help customers solve problems better.
Product Comparison
HONYU's ophthalmic surgical microscope price has better performances, as shown below.
