Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

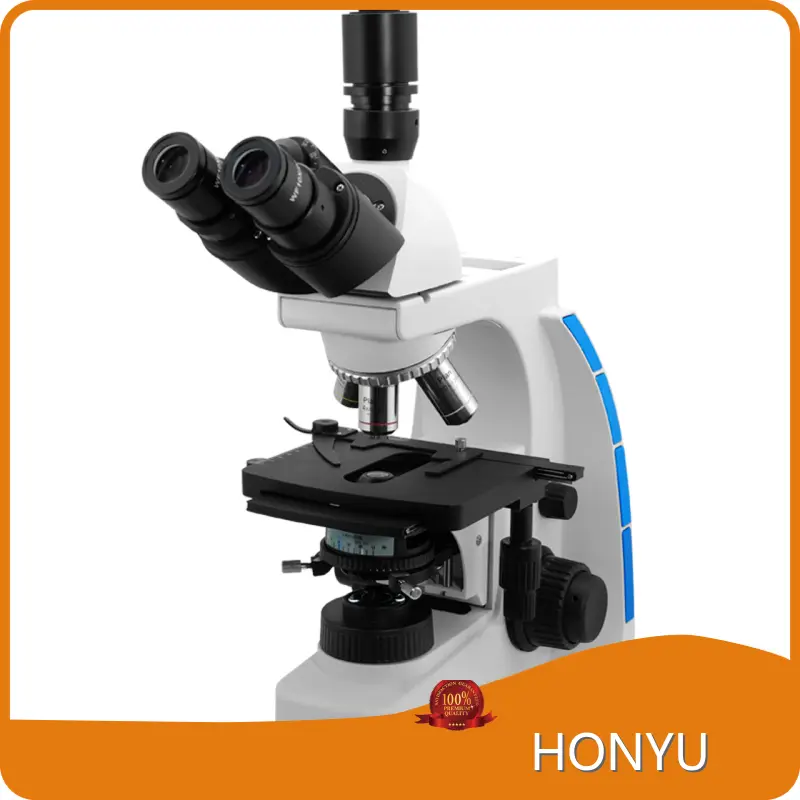

Biological Microscope Price Series for Sale
Product details of the biological microscope price
Quick Overview
biological microscope price has advantages of good quality material and special design. The product has outstanding performance and stable and reliable quality. The product is known in the industry for its distinguished features.
Product Description
HONYU will present you the details of biological microscope price in the following section.
Features
• Adopting UCIS Infinity Independent Achromatic Optical System
• Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
• High cost performance with high quality accessories
• CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
|
Head |
Trinocular head, 30°inclined, 360°rotatable, interpupillary distance 52-75mm, Diopter adjustment: +5 to -5 |
|
Eyepiece |
WF10X/20mm, high eye-point up to 21mm |
|
Objectives |
Infinity Plan 4X/0.1 WD=13.21mm |
|
Infinity Plan 10X/0.25 WD=5.03 mm |
|
|
Infinity Plan 40X/0.65 WD= 0.72mm |
|
|
Infinity Plan 100X/1.25 WD= 0.17mm |
|
|
Nosepiece |
Backward quadruple nosepiece |
|
Focus System |
Low position coaxial focus system with coarse/fine adjustment |
|
Coarse adjustment: 14mm per rotation |
|
|
Fine adjustment: 0.1mm per rotation; division of fine focusing: 0.001mm |
|
|
Stage |
Double layers, size 156x138mm, moving range 76x54mm. Low positioned X-Y coaxial control knob, capable of holding two specimen slides |
|
Condenser |
Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast slide; Condenser center adjustable, color-coded diaphragm scale markings corresponded with the objectives of different power. |
|
Filter |
Blue filter |
|
Light source |
6V 20W halogen lamp, Kohler illumination with field diaphragm, easy to replace bulb. |
|
Power |
100-240V wide power range |
|
Weight |
9kg |
|
Certification |
ISO9001, ISO14001, ISO13485 and CE Certified. |
Optional Accessories
|
Items |
Specification |
|
Head |
Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
|
Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
|
|
Eyepiece |
WF10x/22mm, High Eyepoint up to 21mm |
|
WF16x/13mm, High Eyepoint up to 21mm |
|
|
Retical Eyepiece WF10x/20mm |
|
|
Objective |
Infinity Plan 20X/0.4/0.17, WD=2.71mm |
|
Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) |
|
|
Nosepiece |
Quintuple reversed nosepiece |
|
Light |
Upgrade to LED 3W |
|
Filter |
Green filter |
|
Yellow filter |
|
|
Frosted Glass |
|
|
Polarizing Kit |
Analyzer + Polarizer |
|
Dark Field |
Dark field condenser, dry, for objective 4x,10x,40x,100x |
|
Centering telescope |
Centering telescope |
|
Phase-contrast Condenser: |
Phase-contrast Condenser: NA:1.25, for 10X to 100X |
|
Phase Contrast Slider, for Infinity Plan Phase Contrast Objective |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Infinity Plan Phase Contrast Objective, Positive |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Infinity Plan Phase Contrast Objective, Negative |
10x |
|
20x |
|
|
40x |
|
|
60x |
|
|
100x |
|
|
Fluorescence Attachment |
Fluorescence Set 100W |
|
Omega Excitation Filter |
UV |
|
V |
|
|
B |
|
|
G |
|
|
Adapter |
CCD 1.0x |
|
CCD 0.5x |
|
|
CCD 0.25x |
|
|
Canon EOS digital Adapter |
products display
Company Advantages
By developing and producing new biological microscope price, Ningbo Haishu HONYU Opto-Electro Co., Ltd has been regarded as one of the most powerful manufacturers. Solid economic foundation of HONYU better guarantees the quality of biological microscope price. It is the goal of our company to continuously create and develop new products, always providing customers with the latest trends.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
