Best Value Types of Operating Microscope for Dslr
Company Advantages
· types of operating microscope is developing toward functional, practical, and decorative types.
· Our focus on researching and developing new technology makes the quality and performance of the product lead in the industry.
· The commercial future of this product looks very promising.
Features
• 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
• Two objectives with different focusing distance
• High brightness 10W LED illumination
• Total Magnification: 3x-16x (with Optional objective)
Specification
|
Magnification of binocular |
8X |
|
Binocular |
0-180° inclinable |
|
Magnification of eyepiece |
12.5X |
|
Interpupillary distance |
50mm-80mm |
|
Diopter adjustable |
±7D |
|
Focal length of objective |
F=200mm and F=250mm two objectives |
|
Magnification changer |
3-step, 0.6X, 1X, 1.6X |
|
Total magnification |
4.8X, 8X, 12.8X, 6X, 10X, 16X |
|
Linear field |
50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
|
Fine focusing distance |
10mm |
|
Illumination |
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
|
Filter |
Build-in green and yellow filters |
|
Balancing arm |
2-part arm with universal joints, counterweight adjustable and can be locked |
|

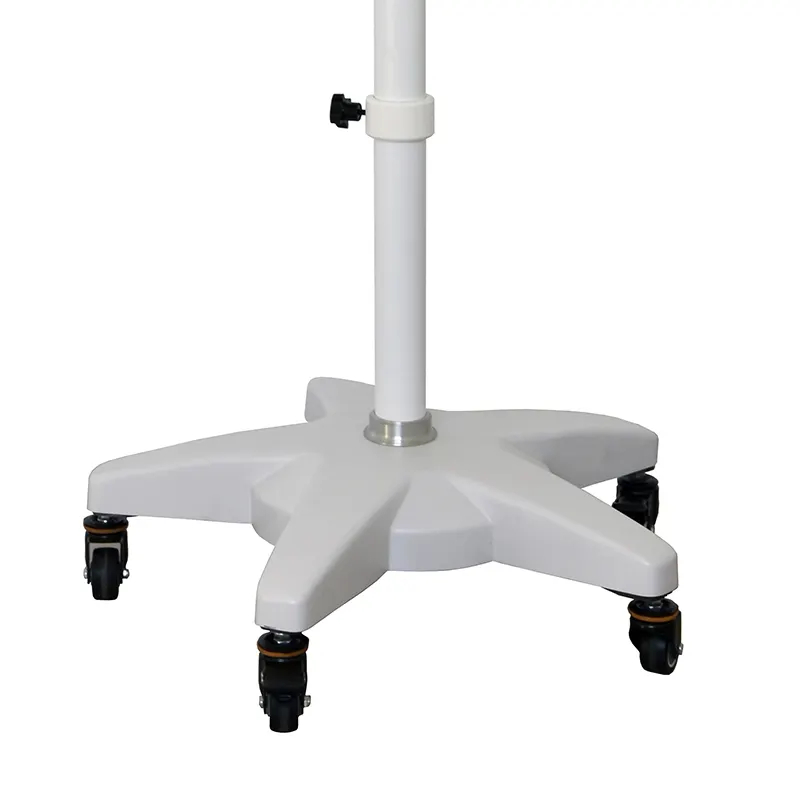

Floor stand |
2-part column fitted on the five-star base with casters |
|
Power supply |
AC100V-AC240V |
Optical Parameter
|
Magnification of eyepiece |
12.5X/20mm |
|||||||||||
|

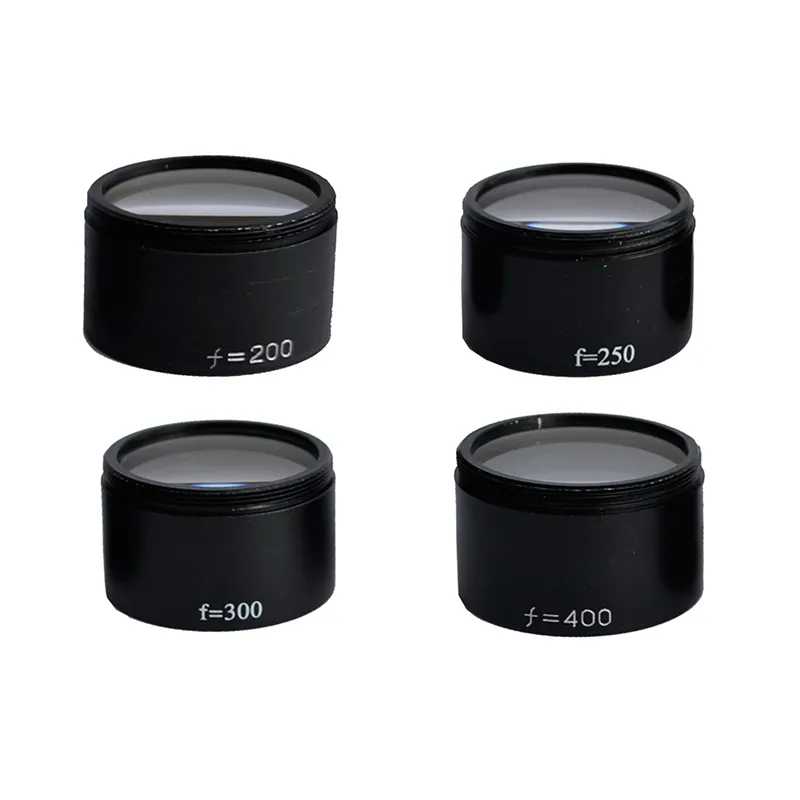

Focal length of objective |
F=200mm |
F=250mm |
F=300mm(optional) |
F=400mm(optional) |
||||||||
|
Magnification on handwheel |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
1.6X |
1X |
0.6X |
|
Total magnification |
16X |
10X |
6X |
12.8X |
8X |
4.8X |
10.7X |
6.7X |
4X |
8X |
5X |
3X |
|
Linear field (mm) |
15 |
24 |
40 |
19 |
30 |
50 |
23 |
37 |
60 |
30 |
48 |
80 |
|
Diameter of spot (mm) |
57 |
71 |
86 |
113 |
||||||||
|
Exit pupil distance (mm) |
20 |
|||||||||||
Optional accessories
|
Objectives |
F=200mm, F=300mm, F=200-300mm zooming objective |
|
Other accessory |

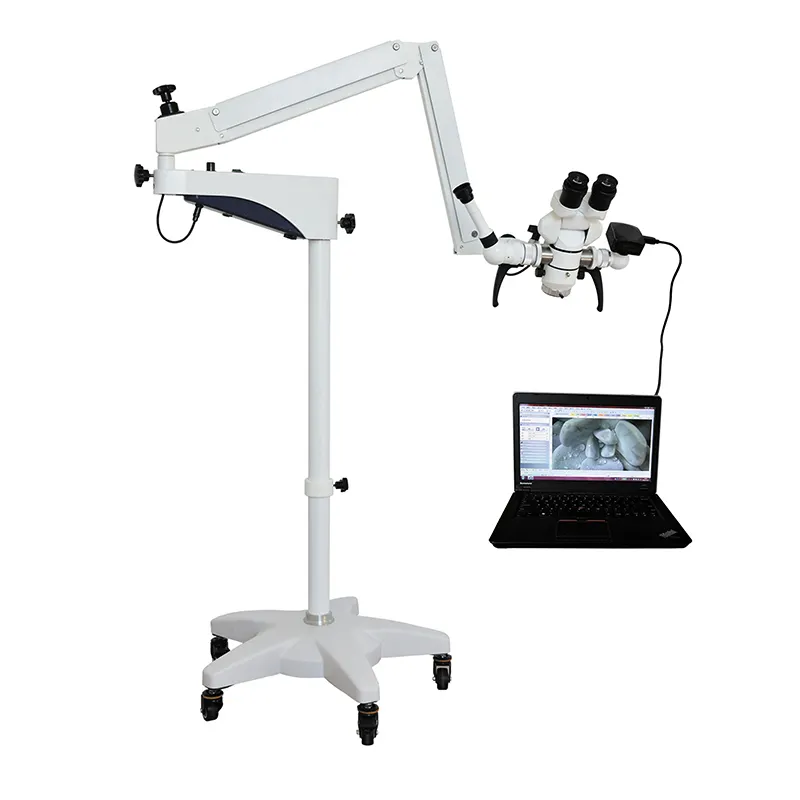

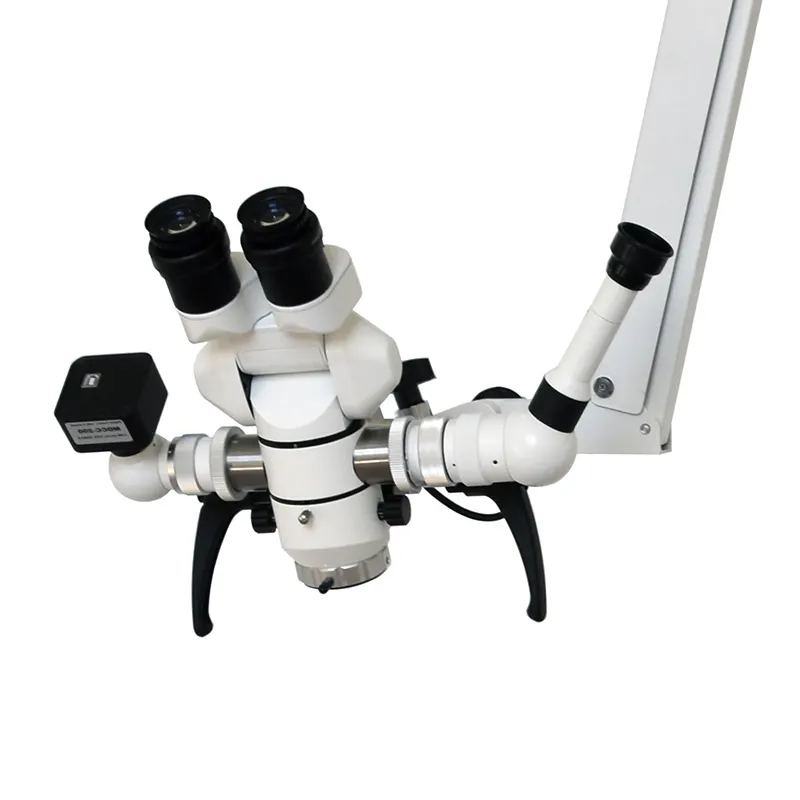

Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |

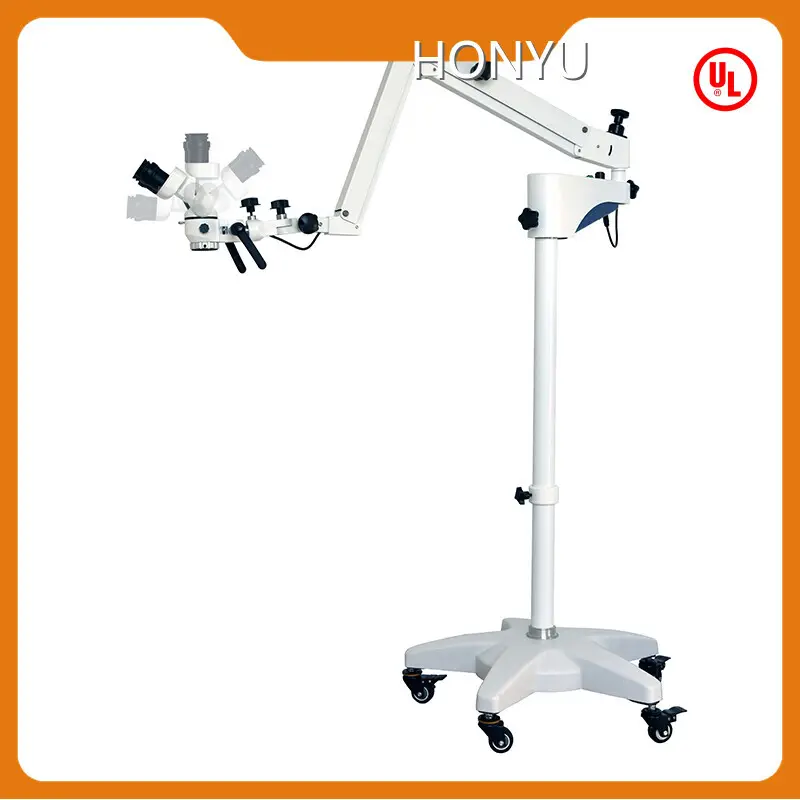

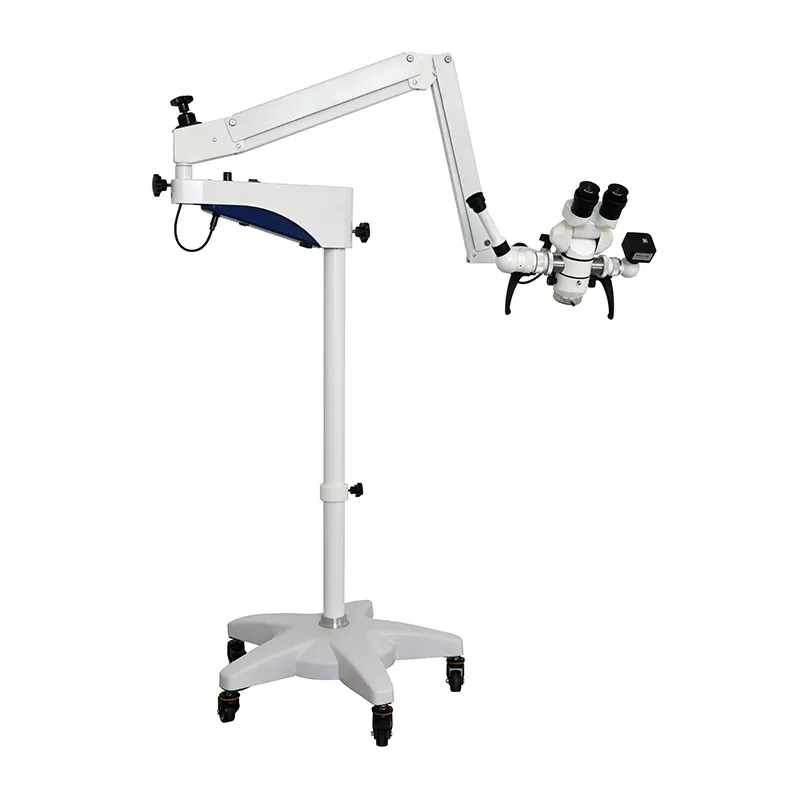

products display
Company Features
· With industry elites and advanced technology, Ningbo Haishu HONYU Opto-Electro Co., Ltd wins more and more customers for its types of operating microscope.
· We have opened up extensive and powerful markets. We will continue to conduct deep market research internationally. Then, we will capture a larger part of the overseas market by improving our comprehensive competitiveness. Our R&D team has a strong capability in creating new products. They will consider feedback from customers and their buying tendency before they start inventing a new product. In this way, the products including types of operating microscope they developed are more targeted and worthy.
· HONYU always insists on providing better service to customers. Inquiry!
Product Comparison
Compared with the same kind of products in the industry, types of operating microscope has the following highlights due to the better technical capability.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
