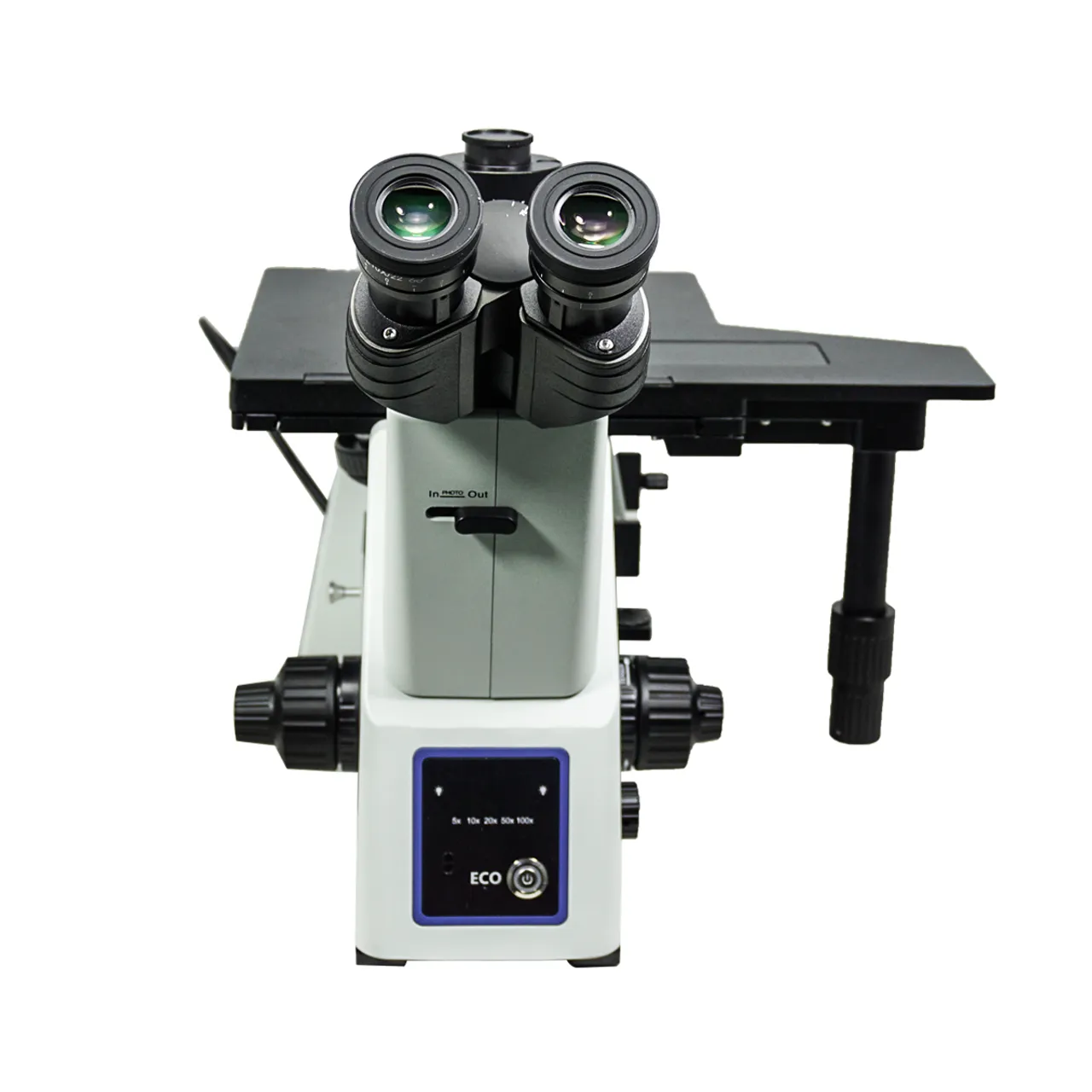

Best Value Metallurgical Microscope with Image Analyzer for Dslr
Product details of the metallurgical microscope with image analyzer
Product Overview
We develop HONYU metallurgical microscope with image analyzer as per the specifications laid by customers. metallurgical microscope with image analyzer relies on the market demand to continuously innovate and develop. metallurgical microscope with image analyzer developed and produced by our company can be widely used in various industries and professional fields. The product is widely used in the current market and has a great potential for wider application in the future.
Product Introduction
Based on the professionalism of pursuing excellence, we strive for perfection in every detail of the product.
Features
• Five Wide-field magnification settings: 50X to 500X
• Long working distance plan achromatic objectives
• Equipped with analyzer and polarizer
Specification
|
Optical system |
Infinity color correct optical system |
|
Viewing head |

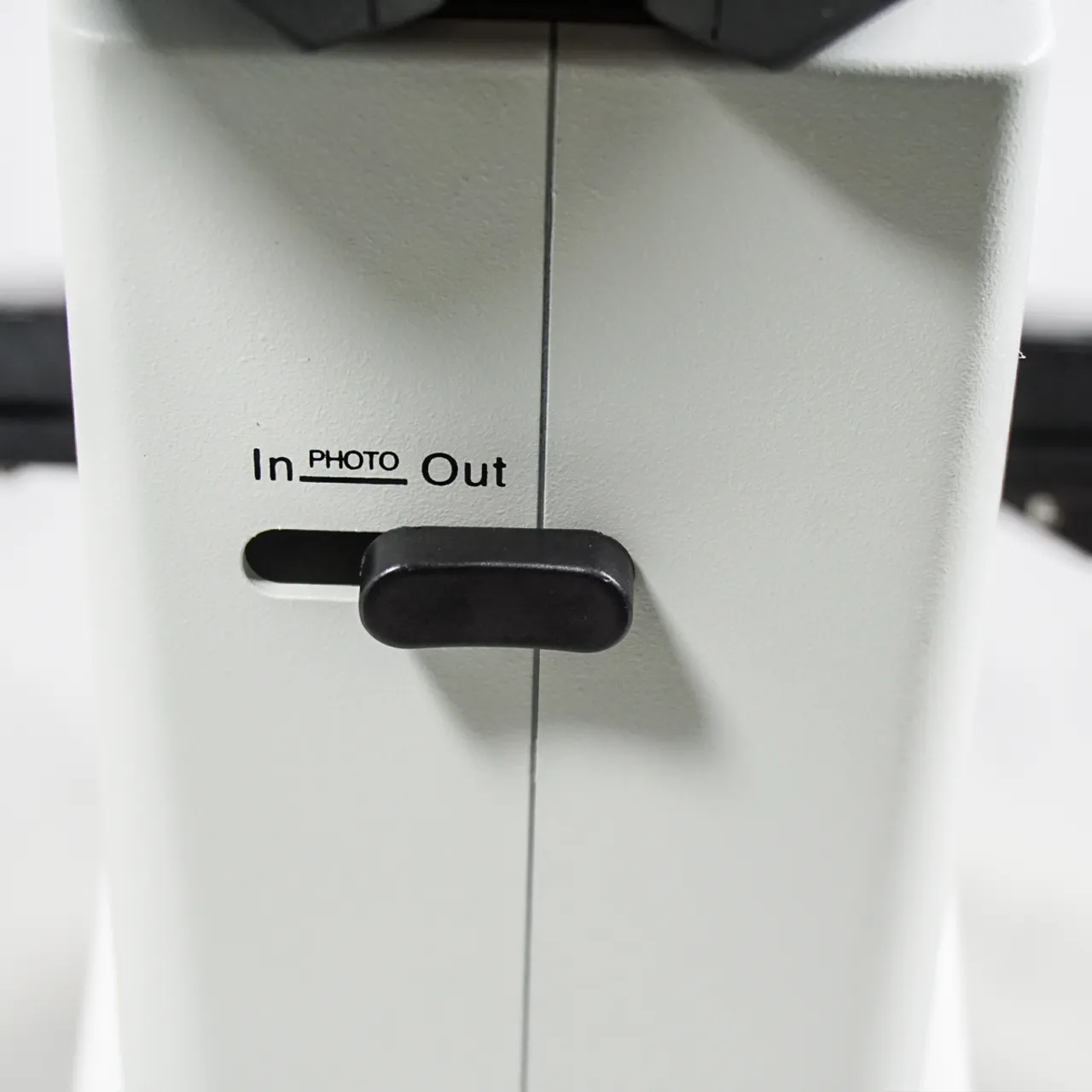

45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular: trinocular=100:0 or 0:100 |
|
Eyepiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, (5-10-20X IS for DIC ) |
|
Nosepiece |

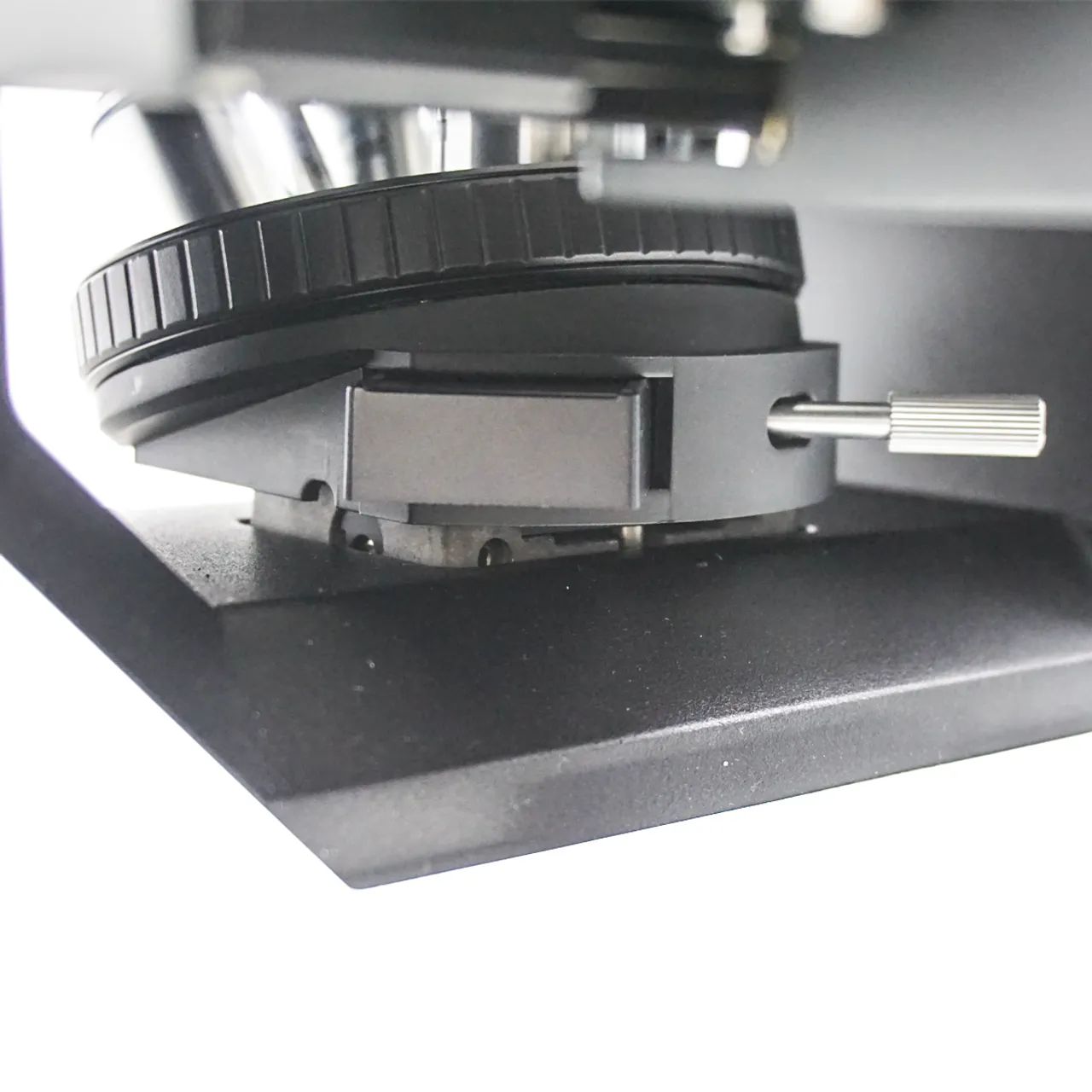

Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor |
|
Frame |

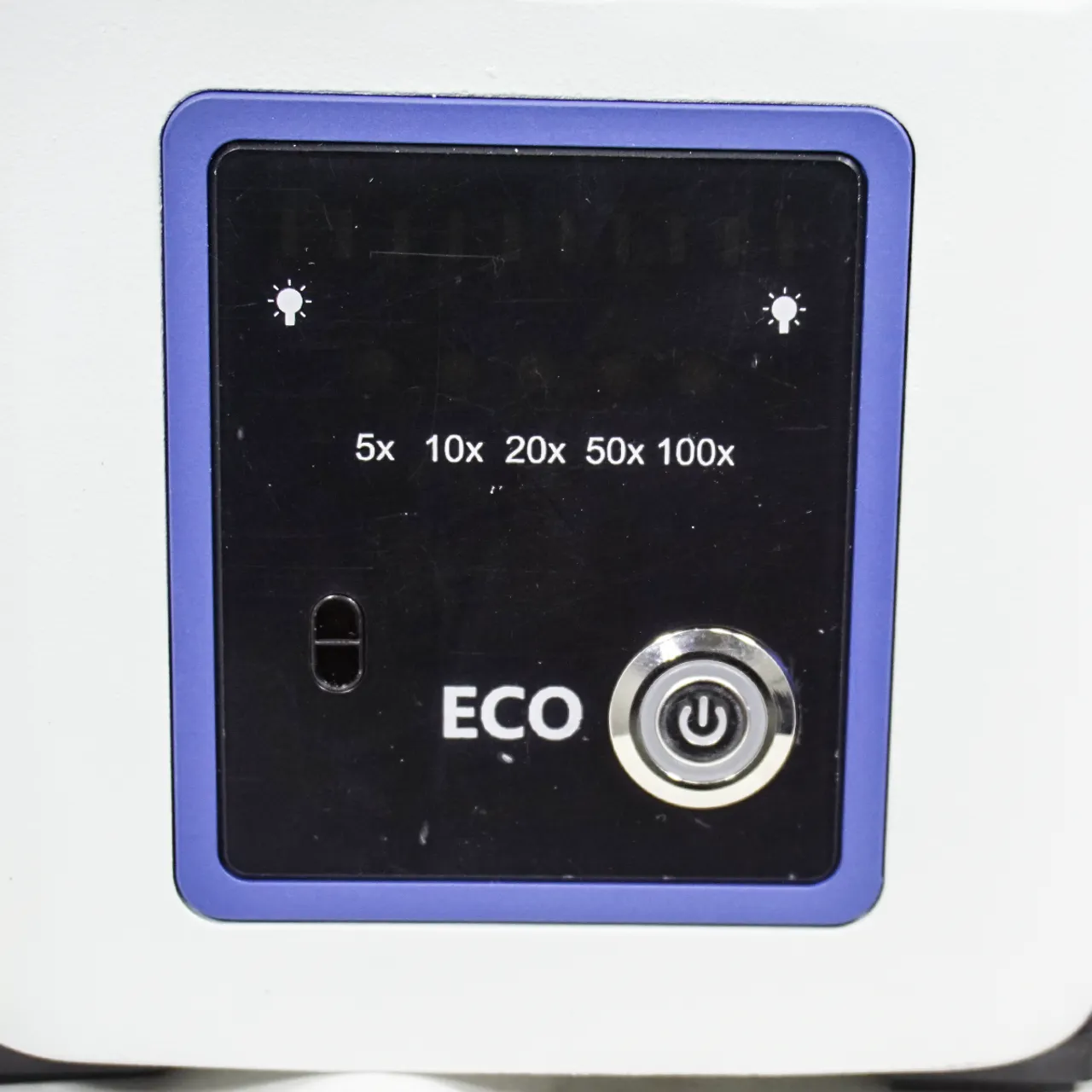

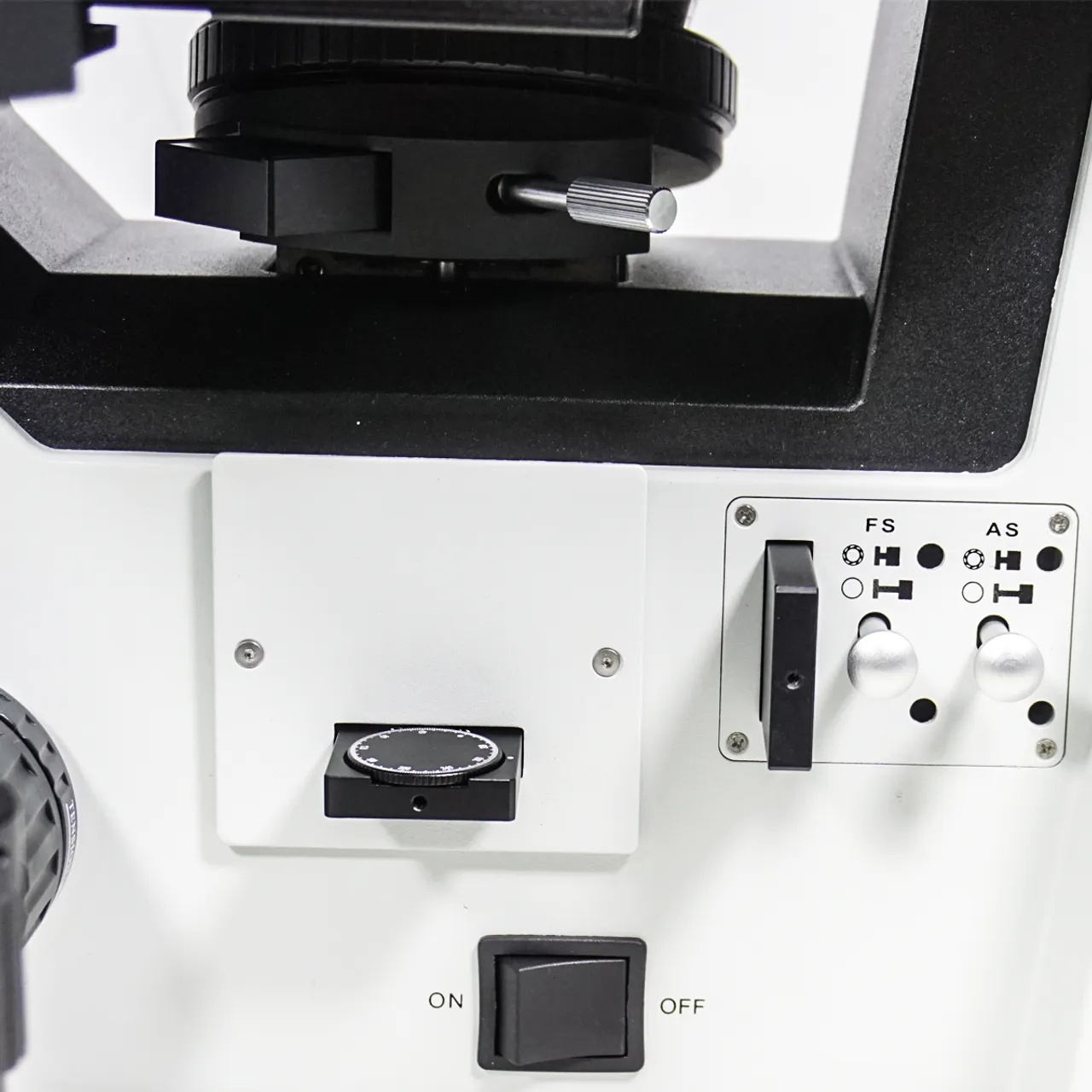

Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture |
|
diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display |
|
|
Illumination |
External power adapter, input 100V-240V, output 15V13.4A, light intensity adjustable |
|
Stage |
Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob |
|
Filters |
LBD filter |
|
Polarizing Kits |
Polarizer, |
|
360 degree rotatable analyzer, |
Optional Accessories
|
Eeypiece |
High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable |
|
Objective |
Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X |
|
Long working distance bright & dark field plan achromatic metallurgical objectives100X |
|
|
Camera adapter |
0.35X, 0.5X, 0.65X, 1X focusing C-mount |
|
DIC Kits |
DIC attachment |
|
Filters |
Blue, Yellow, Green |
|
Polarizing Kits |
fixed analyzer, |

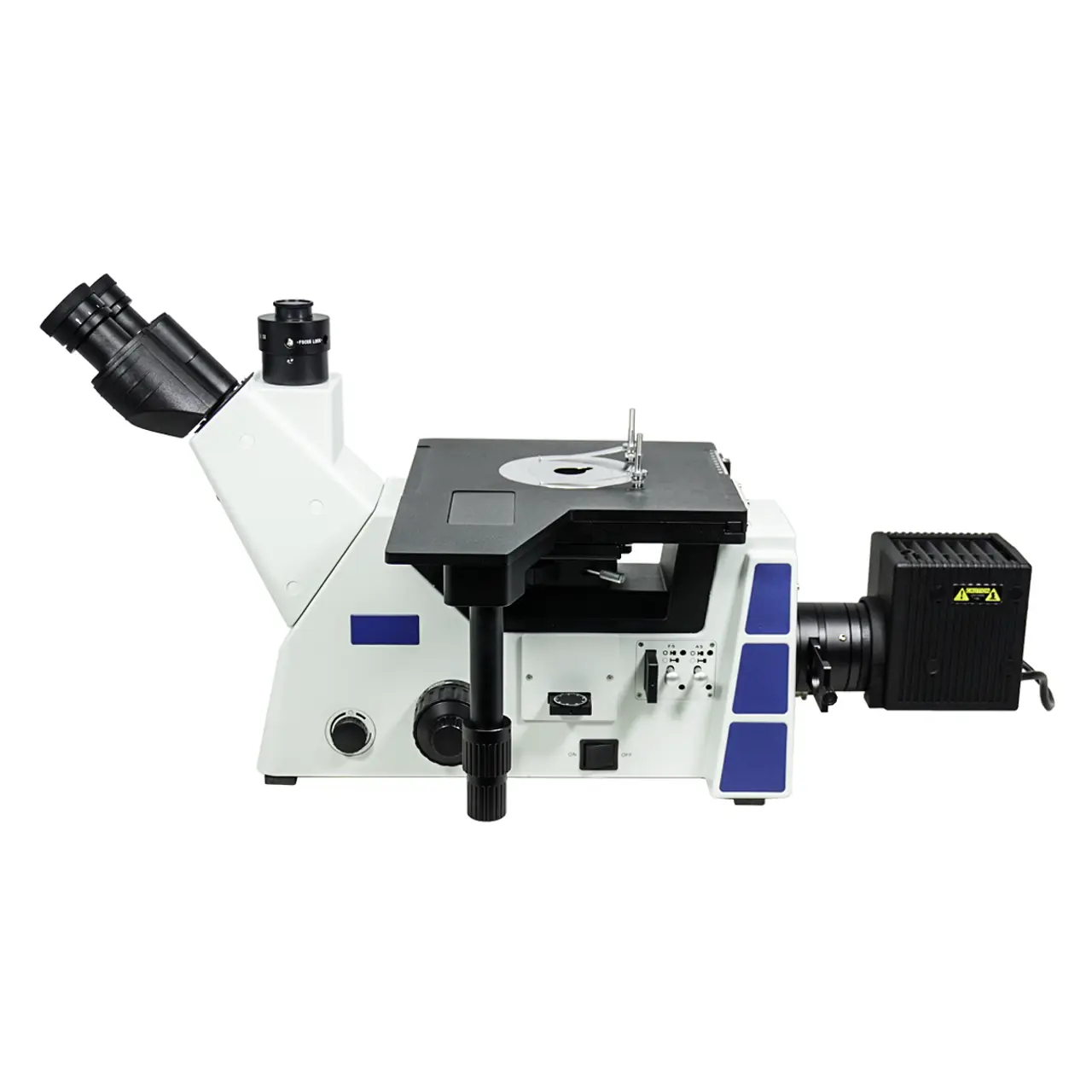

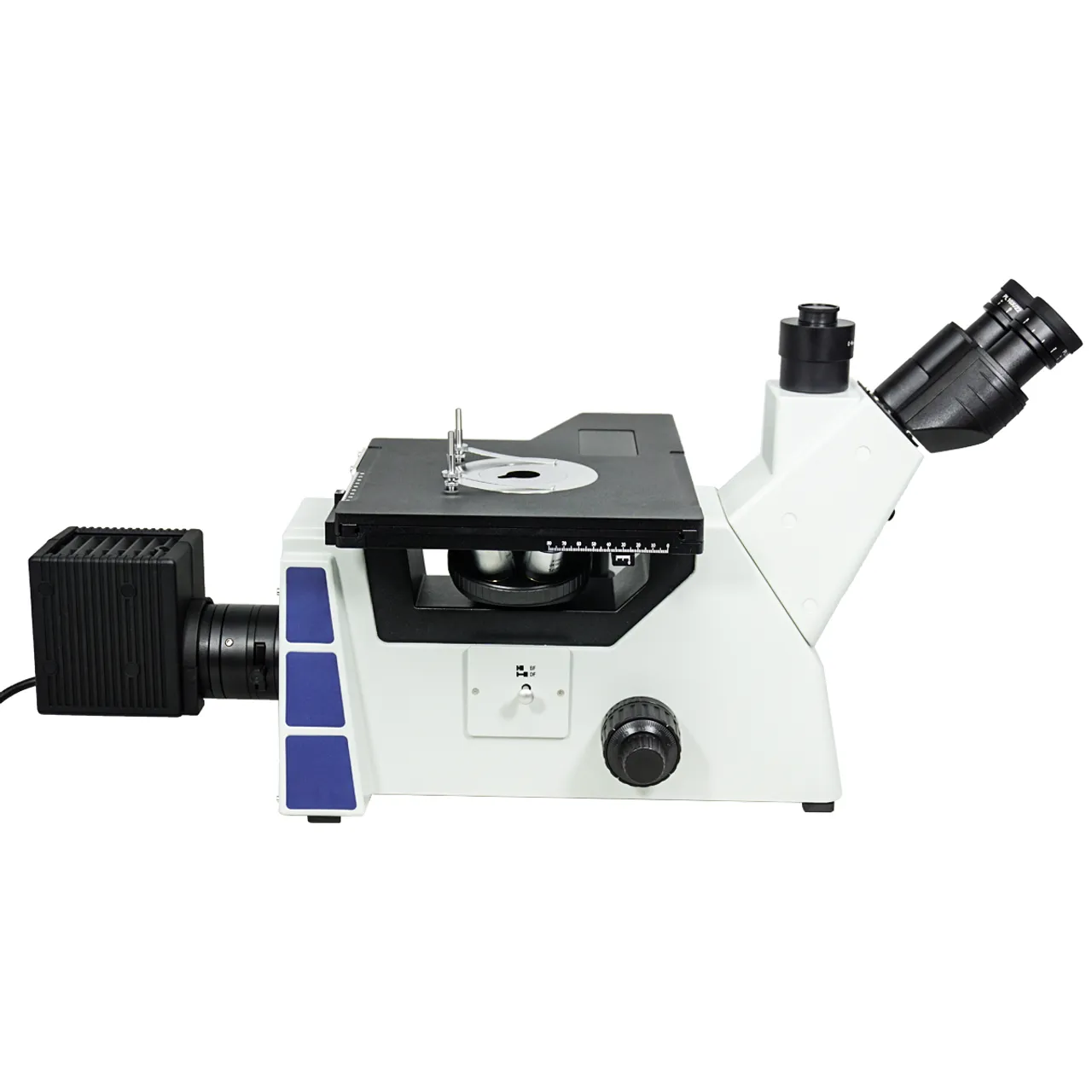

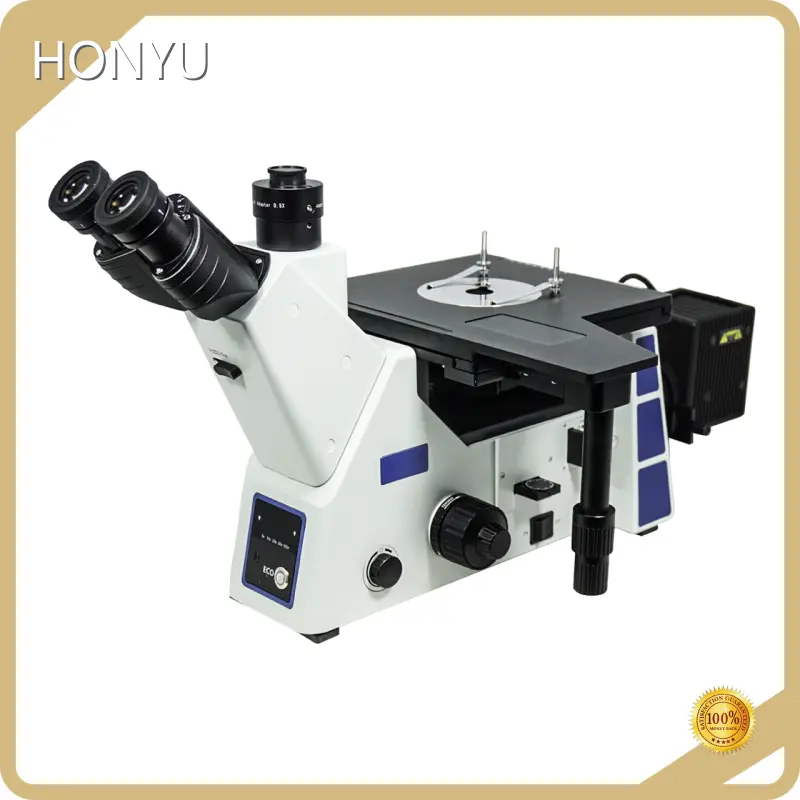

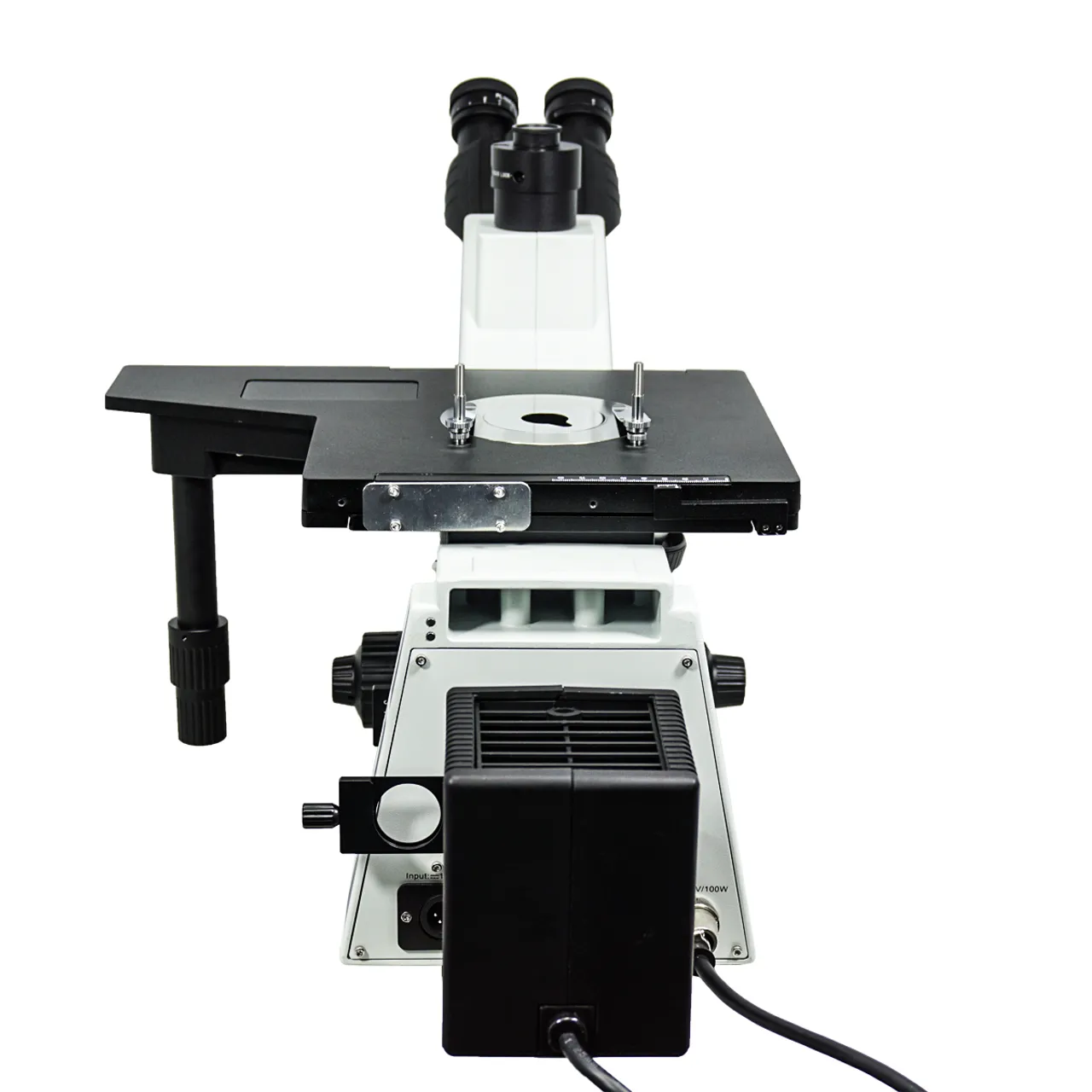

products display
Company Introduction
At Ningbo Haishu HONYU Opto-Electro Co., Ltd, high quality metallurgical microscope with image analyzer and professional solutions are provided. Our factory is constantly invested in a series of manufacturing facilities. With the help of these advanced facilities, they enable us to improve overall operational efficiency for our manufacturing projects. HONYU aims to provide high-quality service for customers.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
