Comprehensive Microscope Solution Supplier for Biological and Industrial Inspection.

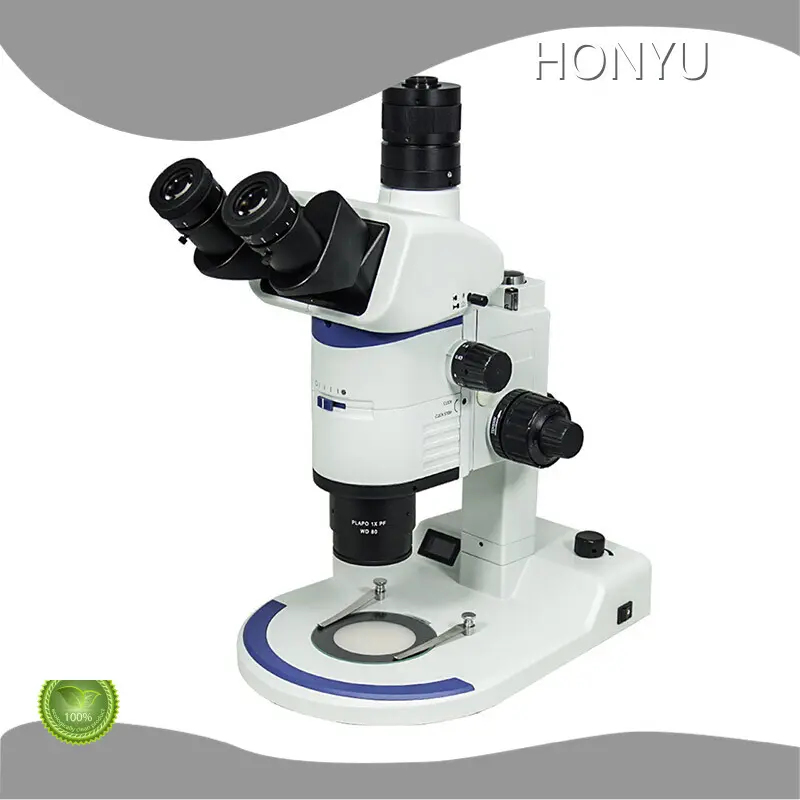

Best Pricebuy Stereo Microscope for Dslr
Company Advantages
· HONYU buy stereo microscope only adopts the finest materials from top-grade suppliers.
· Every aspect of the product is strictly tested to meet international quality standards.
· The devotion to the quality of buy stereo microscope helps HONYU to be a leading manufacturer in the industry.
Features
• 0.63X-8X super widefield zoom magnification power
• Large working distance
• Widefield Optics Offering Crisp Clear Stereo Images
Specification
|
Item |
Specification |
Z12T |
Z12 |
|
Optical System |
Infinite Parallel Galileo Zoom Optical System |
● |
● |
|
Viewing Head |
Tilting trinocular viewing head, 5-45 degree adjustable; binocular: trinocular= 100:0 or 0:100; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw |
● |
○ |
|
30 degree inclined trinocular head; fixed light distribution, binocular: trinocular=50: 50; interpupillary distance 50-76mm; fixed eyepiece tube with lock screw |
○ |
● |
|
|
Eyepiece |
High eye-point wide field plan eyepiece PL10×/22mm, diopter adjustable |
● |
● |
|
High eye-point wide field plan eyepiece PL15×/16mm, diopter adjustable |
○ |
○ |
|
|
High eye-point wide field plan eyepiece PL20×/12mm, diopter adjustable |
○ |
○ |
|
|
Zoom Range |
Zoom range: 0.63X-8X, click stop for 0.63×, 0.8×, 1×, 1.25×, 1.6×, 2×, 2.5×, 3.2×, 4×, 5×, 6.3×, 8×, with built-in aperture diaphragm |
● |
● |
|
Objective |
Plan Apochromatic Objective 0.5×, W.D.: 70.5mm |
○ |
○ |
|
Plan Apochromatic Objective 1×, W.D.: 80mm |
● |
● |
|
|
Plan Apochromatic Objective 1.5×, W.D.: 31.1mm |
○ |
○ |
|
|
Plan Apochromatic Objective 2×, W.D.: 20mm |
○ |
○ |
|
|
Zoom Ratio |
01:12.5 |
● |
● |
|
Nosepiece |
Nosepiece for 2 objectives |
○ |
○ |
|
Focusing Unit |
Coarse and fine coaxial focus system, integrated body with focus holder, coarse range: 50mm, fine precision 0.002mm |
● |
● |
|
Coaxial Illumination |
Intermediate magnification 1.5x, with 1/4λ glass slide, can be rotated 360 degrees, 20W LED cold light source power box, with brightness adjustment knob, flexible dual optical fiber, length 1 meter |
○ |
○ |
|
Base |
Flat base, without light source, with Φ100mm black and white plate |
○ |
○ |
|
Plan base with transmitted illumination (work with external 5W LED fiber); built-in 360 degree rotatable mirror, location and angle adjustable |
● |
|
|
|
Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K) |
● |
||
|
Illumination |
5W LED light box (size: 270×100×130mm) with single fiber (500mm), color temperature 5000-5500K; operating voltage 100-240VAC/50-60Hz, output 12V |
● |
|
|
LED Ring light (200pcs LED lamps) |
○ |
○ |
|
|
Camera Adapter |
0.5×/0.65×/1× C-mount adapters |
○ |
○ |
|
Packing |
1set/carton, Net/Gross weight: 14/16kg, Carton size: 59×55×81cm |
● |
● |
products display
Company Features
· Years of solid development has made Ningbo Haishu HONYU Opto-Electro Co., Ltd a reputable company in China. We have grown into an expert in offering buy stereo microscope services.
· Our plant has the latest technology that can get customer projects completed and looking amazing in just a few weeks. Our factory is strategically located. It allows us to acquire a variety of technical and support talents that help us in our mission to provide excellent manufacturing services.
· Sustainability is an important element in our efforts for building trust with customers. We only develop products that offer outstanding sustainability advantages.
Product Details
In the production process of buy stereo microscope, we carefully polish the details, so as to strive for perfect quality.
Application of the Product
HONYU's buy stereo microscope is widely applicable in the industry.
HONYU provides comprehensive and reasonable solutions based on customer's specific situations and needs.
Product Comparison
Compared with similar products, our buy stereo microscope is provided with the following competitive advantages.
HONYU is a professional optical supplier in China with more than 20 years’ experience in Microscopes.
