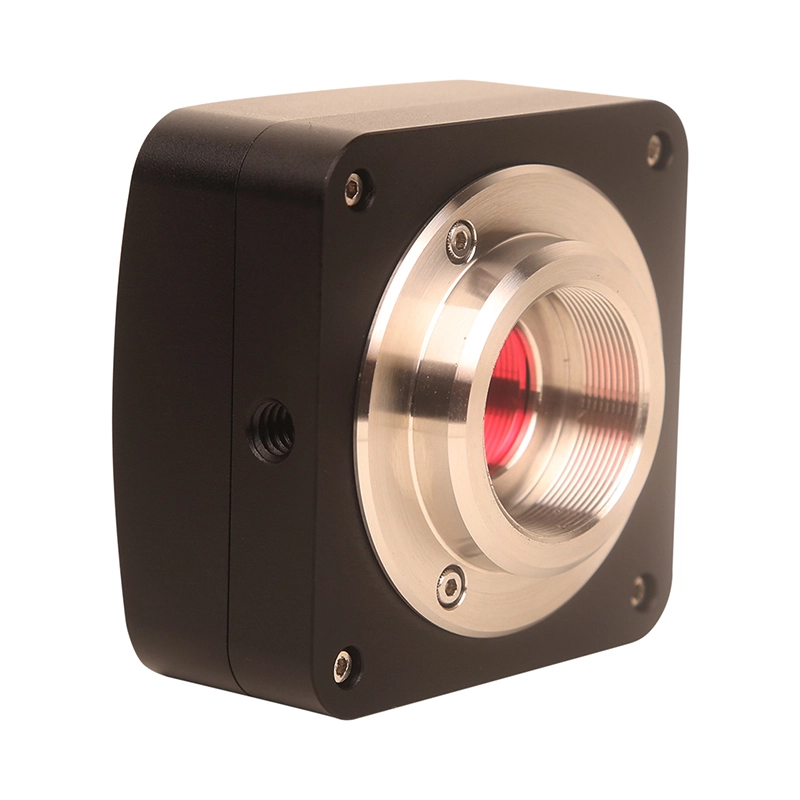

5.1MP USB2.0 Microscope Camera Lens - HONYU
Features
• USB2.0 high speed digital camera with CMOS sensor
• Capable of recording real-time, high-definition videos and capturing 5.1MP still images
• Compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Capable of being attachable to any microscopes, telescopes, endoscopes with C-mount
Specification
|
Hardware Configuration |
||
|
Max. Resolution |
2592x1944 (5.1 Mega Pixels) |
|
|
Pixel Size |
2.2μm x 2.2μm |
|
|
Frame Size and Rate |
5fps@2592x1944, 18fps@1280x960, 60fps@640x480 |
|
|
Sensor Model |
APTINA MT9P001(Color) |
|
|
Sensor Size |
1/2.5 inch (5.7mm(H) x 4.28mm(V)) |
|
|
Sensitivity |
0.53 V/lux-sec |
|
|
DynamicRange |
66.5dB |
|
|
A/D Converter |
10-bit, 8-Bit R.G.B to PC |
|
|
SN Ratio |
40.5dB |
|
|
Spectral Range |
380-650nm (with IR-filter) |
|
|
Binning |
1x1, 2x2, 4x4 |
|
|
Exposure |
0.294ms~2000msms |
|
|
Color Rendering Technique |
Ultra FineTM Color Engine |
|
|
White Balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
|
|
Capture/Control API |
Native C/C++ SDK, DirectShow, Twain |
|
|
Capture Mode |
Still Picture and Video |
|
|
Software Environment |
||
|
Operating System |
Windows XP / Vista / 7 / 8 (32 & 64 Bit) |
|
|
OS X (MAC OS X) |
||
|
Linux (Kernel 2.6 or Above) |
||
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory:2GB or More |
||
|
USBPort:USB2.0 High-speed Port |
||
|
Operating Environment |
||
|
Operating Temperature |
-10~60℃ |
|
|
Storage Temperature |
-30~80℃ |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
Over USB Port |
|
Optional Accessories
|
Order Number |
Specification Description |
|
ADA.17.FMA050 |
0.5x Fixed Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.AMA050 |
0.5x Adjustable Adapter for Eyepiece Tube or Trinocular Tube(23.2mm) |
|
ADA.17.EDA30 |
23.2mm to 30mm Eyepiece Adapter |
|
ADA.17.EDA305 |
23.2mm to 30.50mm Eyepiece Adapter |
Camera Standard Packing List
• One USB 2.0 5.1MP Digital Camera
• One high-speed USB 2.0 Cable
• One CD with Driver and Software
