3.8X-230X Comparison Microscope - HONYU

Magnification

3.8x~230x

Head

Binocular Head, 30° inclined, interpupillary distance 48~75mm, Diopter +/-5 adjustable

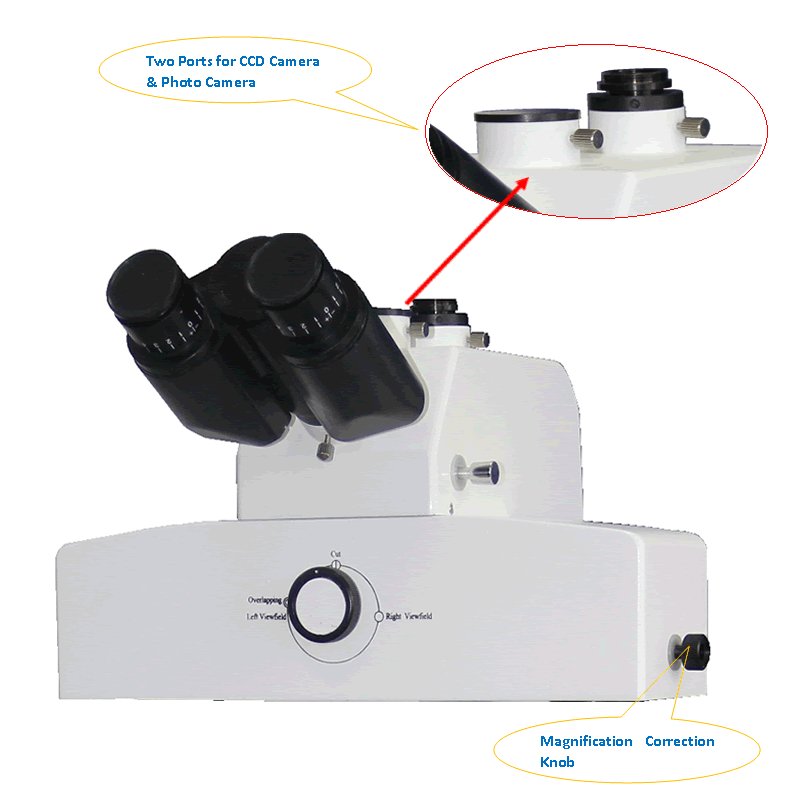

With VIDEO port and PHOTO port

Eyepiece

WF10x/22mm, High Eyepoint

WF20x/12mm, High Eyepoint

Objective

5 Step Zoom Plan Objective 0.8x, 1.25x, 2x, 3.2x, 4.8x

Auxiliary Lens 0.4x, 2.0x

Working Distance

101mm

View Field

Diameter 2.3~62mm

Magnification Correcting

Magnification Correction System, with Correcting Lens

Separation Line Adjusting

Separation Line Adjust System in Back, with Special Designed Adjustment Driver

Working Stage

Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm

Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable

Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm

Bullet Holder

Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects

Light Source

12v 50w fan cooling strong halogen light, brightness adjustable (pair)

5w led cold light, high brightness, brightness adjustable (pair)

Coaxial Light Lens for observing in deep hole, or smooth object surface (Pair)

Polarizing Light Lens, for eliminating flare lights and dazzling lights(Pair)

Transmit bottom light

Filters: red, green, uv

Adapter

Built-in 0.5x CCD Adapter

Front View Photo Adapter for SLR Digital Camera

Easy to view and take photos

Power

80~240v wide range voltage

Dimension

Instrument Size 37*30*63cm

Packing case

Aluminum Case Packing. Convenient for carrying and storing

Optional accessories

Light source

150w cold light source, with optical fiber & light collector

7" pad digital camera

7 inch lcd pad digital camera, android system,

9.7" pad digital camera

9.7 inch lcd pad digital camera, android system,
